Fantech RAPID Response 200/250HP Ducted Ceiling Exhaust Fan IPX4 - Timer or No Timer
$293.90
Description

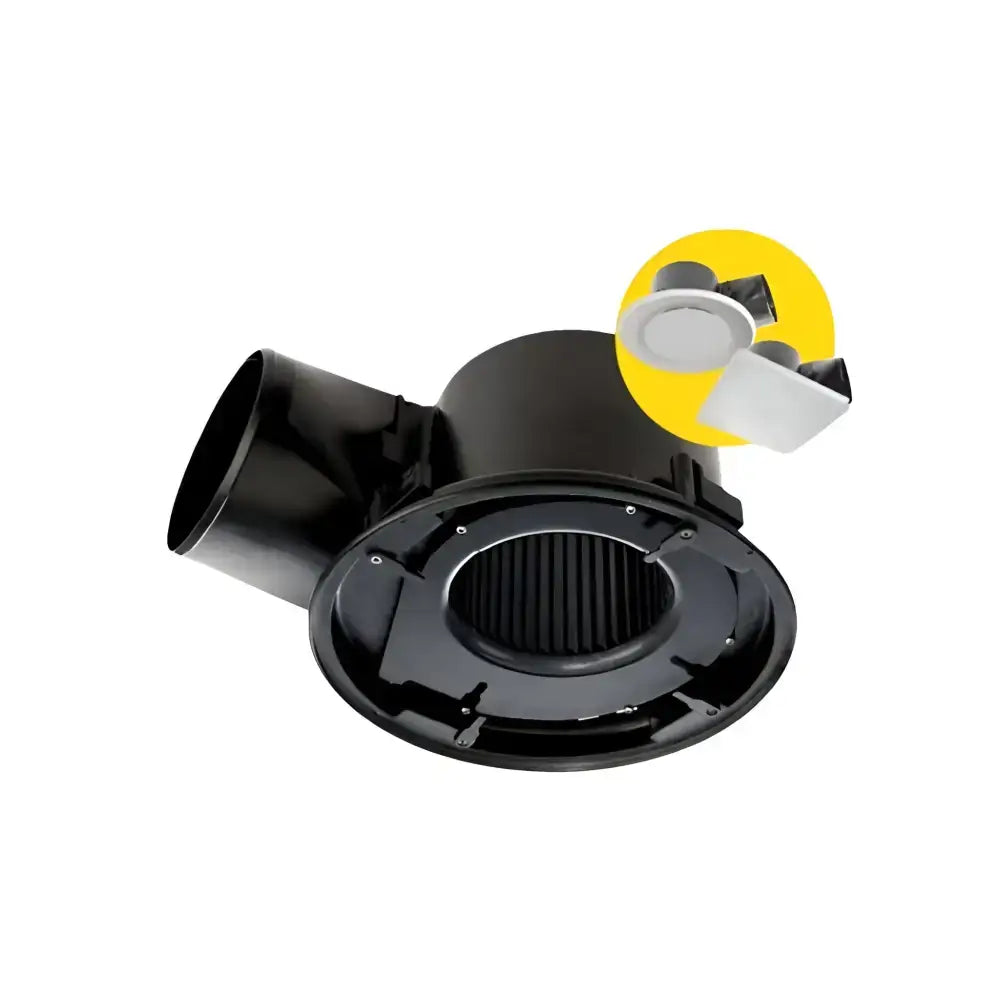

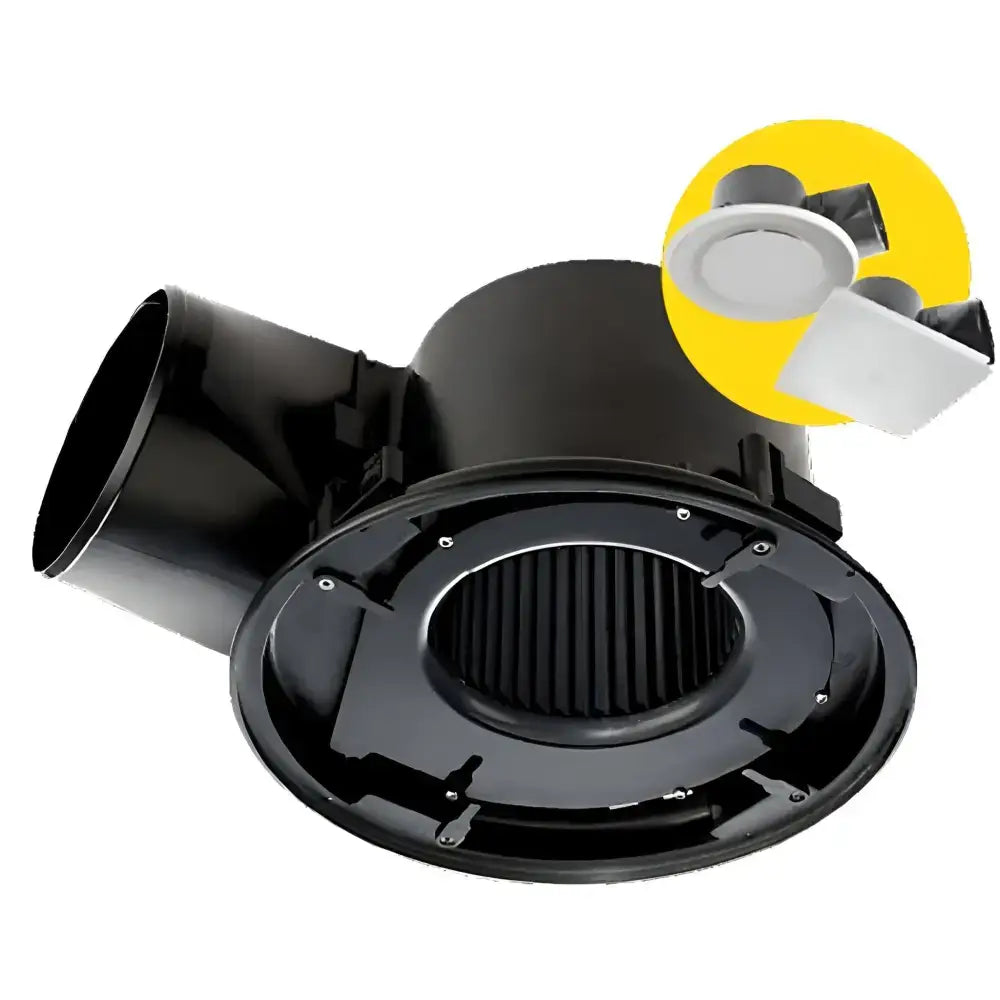

The ultra quiet Rapid Response 200 header box exhaust fan is ideal for odour and dampness removal from toilets, powder rooms, laundries and cupboards. It includes features such as a unique swing clip and removable spigot that makes it very easy to install.

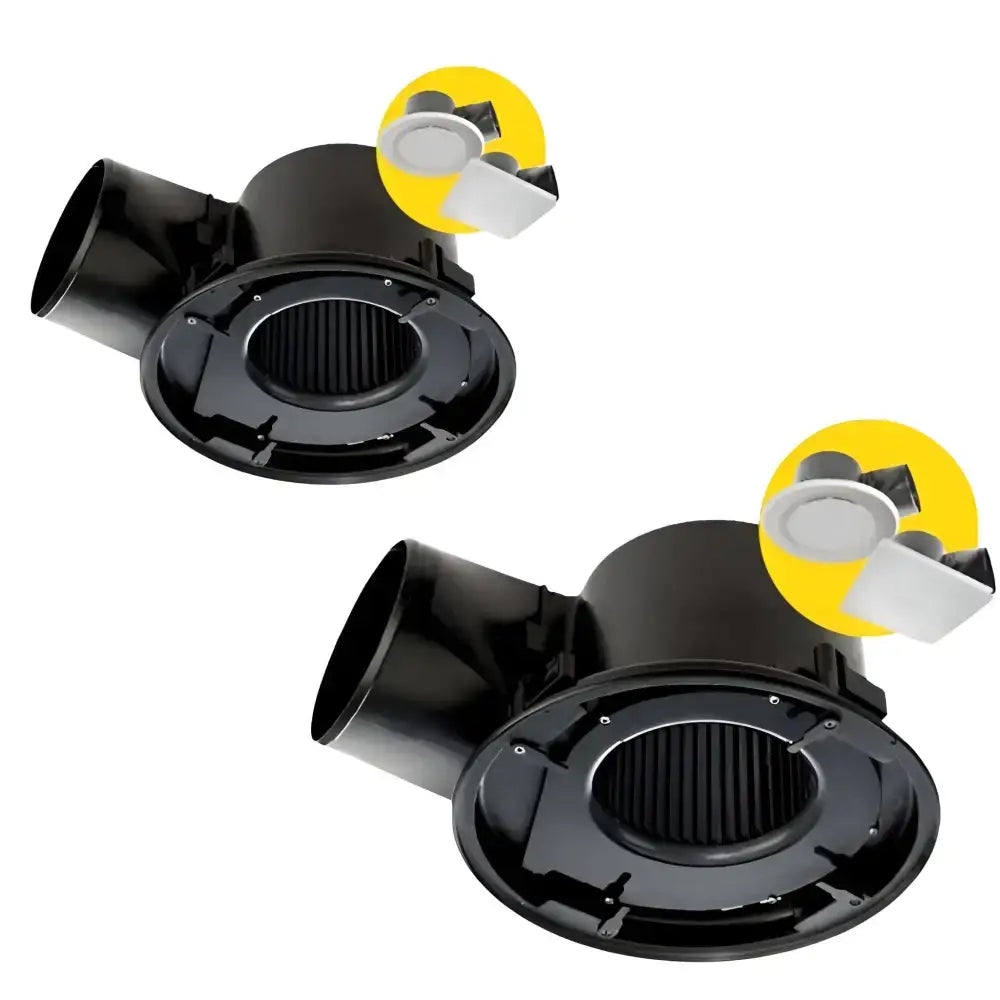

The Rapid Response 250HP header box exhaust fan is one of the quietest and most powerful in its class. Its aerodynamic and fully optimised design minimises air flow resistance and produces powerful, efficient performance.
- Rapid Response provides strong air flow performance to ensure steam is cleared from rooms such as bathrooms and ensuites
- It includes features such as a unique swing clip and removable spigot that makes it very easy to install
- Advanced impeller and housing design provides powerful air flow and minimises noise
- Can be retrofitted into an existing standard 8" (RAPID 200) or 10” (RAPID 250) round fan cut out
- Low resistance non-return backdraft damper maximises air flow performance
- Matching grilles are easy to remove, which makes cleaning easy
- Available with 3-15 minute adjustable run-on timer
- 5 Year Replacement Warranty
- Available with a modern square or round grille. Square grille can be easily rotated to align with walls.
- With Led : (Click here).
- Without Led : (Click here).
Product Specifications :
| Input Voltage (C): | 240V AC |
| Power (W): | 25W LED Max |
| IP Rating (IP): | IPX4 |
| Air flow m³/h† | 216m³/h |
| Air flow L/sec† | 60 |
| Fan Speed rpm | 950 |
| AVG. dB(A) @ 3m | 29 |
| Watts | 30 |
| Brand | Fantech |
| Sku(s) | FANRESPF8, FANRESPF8-T |
| Product Type | Exhaust Fan |
| Colour | Black |
| Run on Timer | No, Yes |
† Air flow without duct and fittings
SPECIAL NOTE
Timer model RESPF8-T includes a 4-pin plug and lead to suit HPM 33, or Clipsal 413/4P bases (with 4-pin sockets).

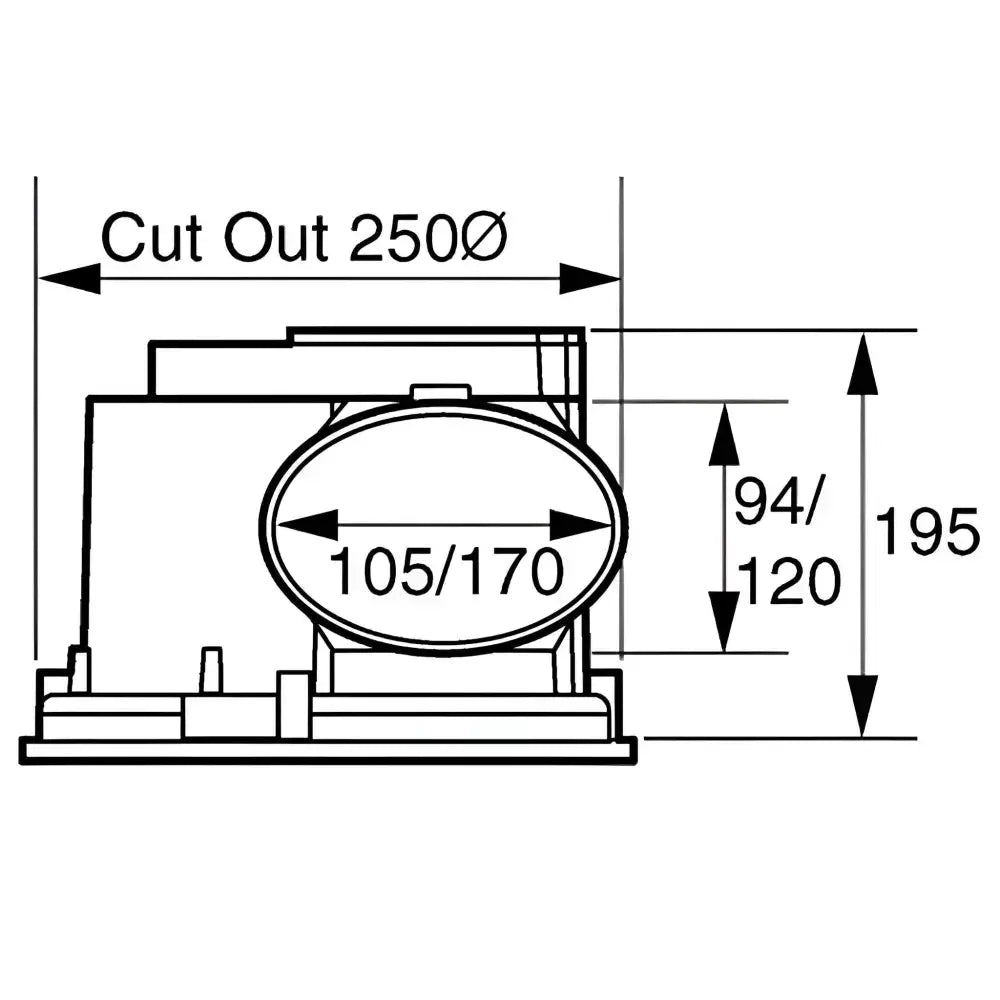

Dimensions :
| RAPID 200 | RAPID 250 | |
| Height: | 195mm | 197mm |
| Cutout: | Ø250mm | Ø290mm |
Datasheet : (Click here).
