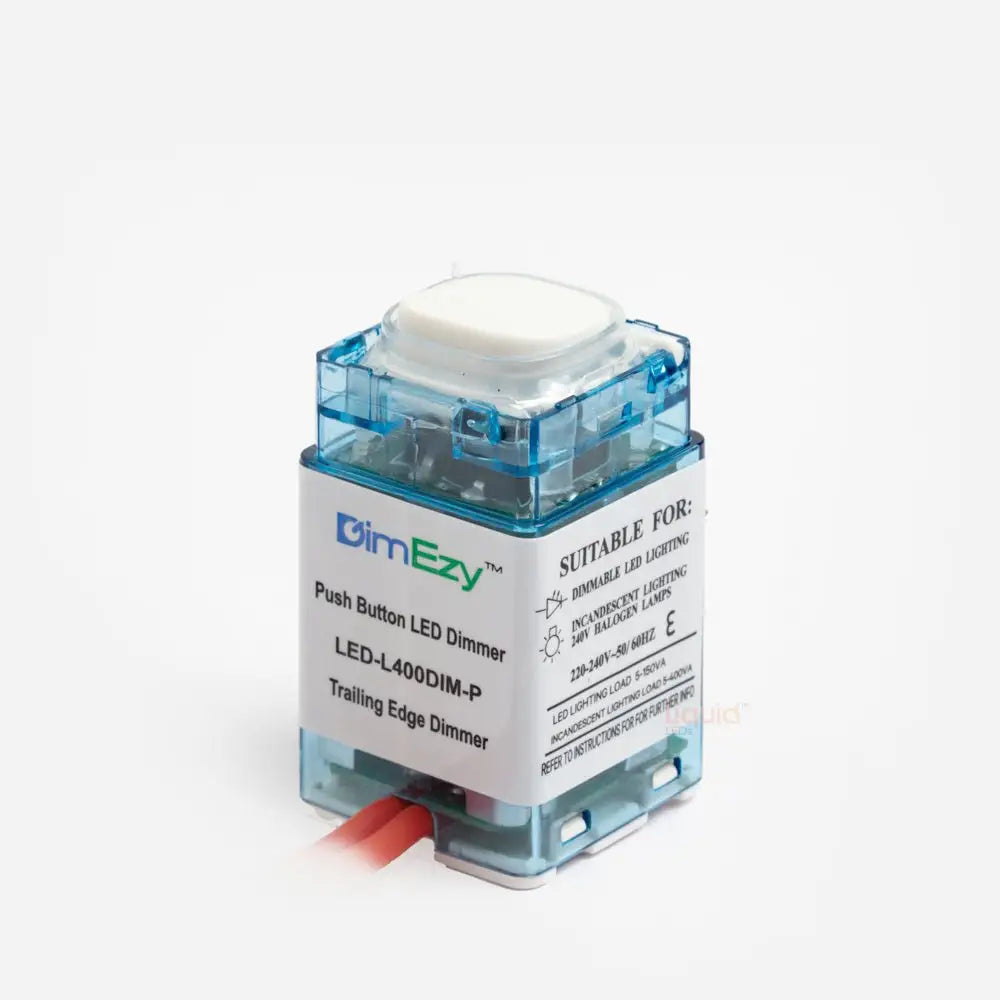

DimEzy™ Push Button LED Dimmer with On/Off switch
Liquidleds
On Sale
The DimEzy™ Push Button LED Trailing-Edge Dimmer is a great fit for 240V dimmable LED loads with a maximum capacity of 400W. It uses trailing edge technology that's friendly to LED bulbs and is fully compatible with dimmable LED light fittings & light bulbs. It smoothly dims bulbs to 0% without flickering and is quieter than leading-edge dimmers. To turn on the lights, press the button. To dim them, continue pressing the button until the desired level is reached. To turn off the lights, press the button again.

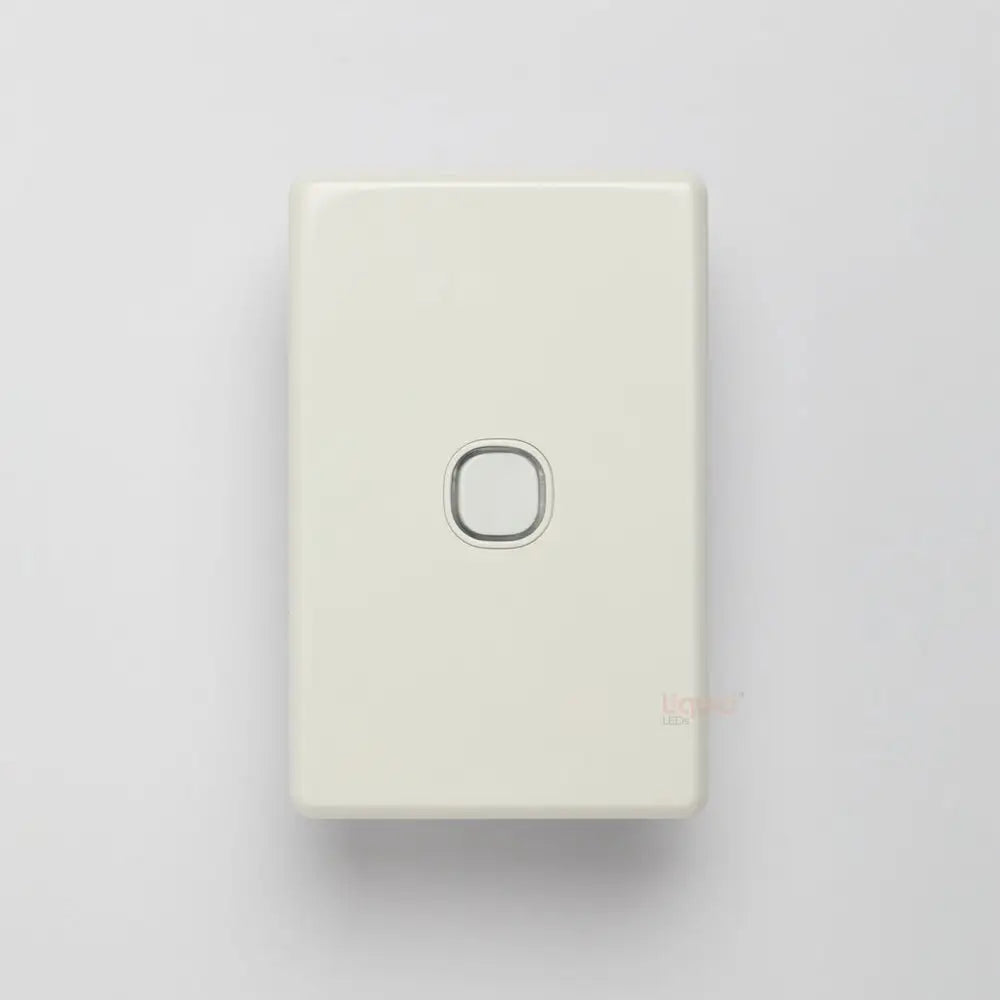

This dimmer doesn't come with a switch wall plate as it's meant to be retrofitted into your existing switch wall plate.
Technical Details
Product Number |
LED-L400DIM-P |
Nominal Operating Voltage |
220-240Vac |
Maximum Load |
400VA @1 Gang |
Minimum Load |
5 Watt |
Dimming Technique |
Trailing Edge Phase Control |
Mounting Centres |
84mm Australian Pattern Plate |
Safety Compliance |
AS/NZ3100, AS/NZ3133, IEC60669-2-1 |
EMC Compliance |
AS/NZS CISPR15, IEC60669-2-1 (26.1, 26.2) IEC61000-3-2 (Excepting when used in conjunction with Electronic loads) |
Warranty |
36 months |
