10mm | 10W/m 3000ºK | IP67 | COB Flexible LED Strip Light
Domus Lighting
Per Meter Custom Cut / Without LED Driver - $40.00
Per Meter Custom Cut / Non Dimmable LED Driver to suit up to 5 meters - $89.00
Per Meter Custom Cut / Dimmable LED Driver to suit up to 5 meters - $129.00
Uncut 5 Meter Length / Without LED Driver - $160.00
Uncut 5 Meter Length / Non Dimmable LED Driver to suit up to 5 meters - $219.00
Uncut 5 Meter Length / Dimmable LED Driver to suit up to 5 meters - $269.00
Size
Per Meter Custom Cut
Uncut 5 Meter Length
Optional LED Driver
Without LED Driver
Non Dimmable LED Driver to suit up to 5 meters
Dimmable LED Driver to suit up to 5 meters
On Sale

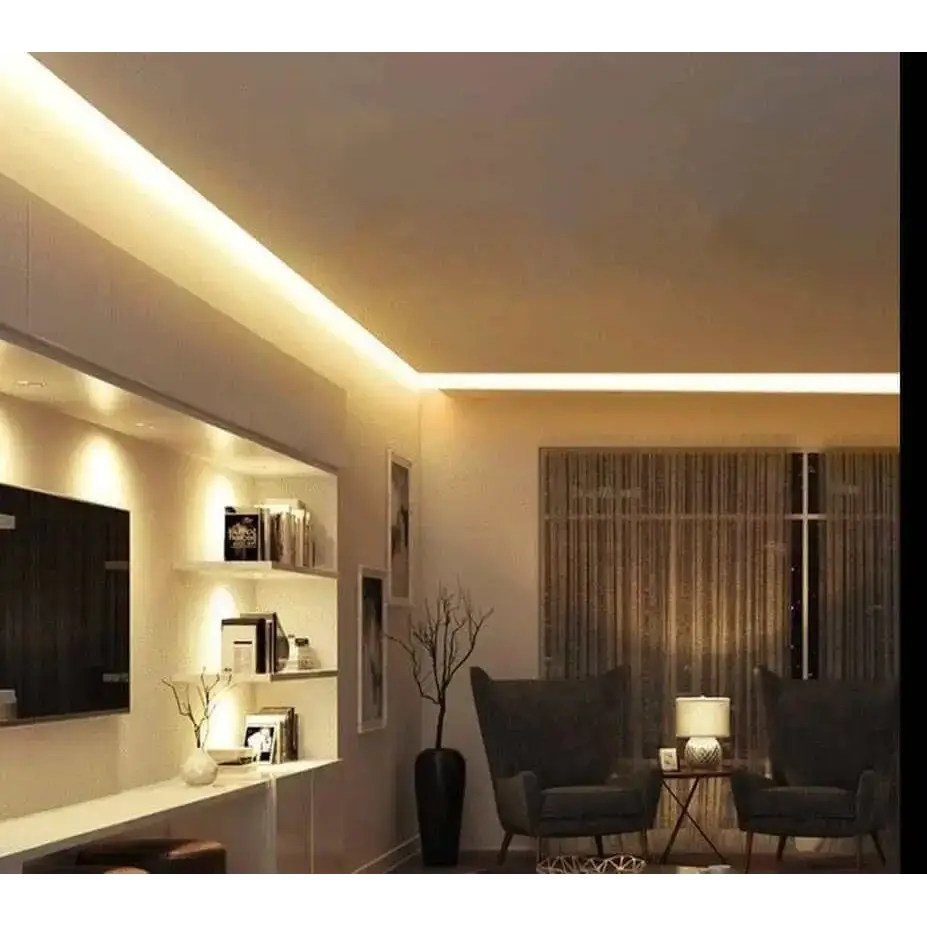

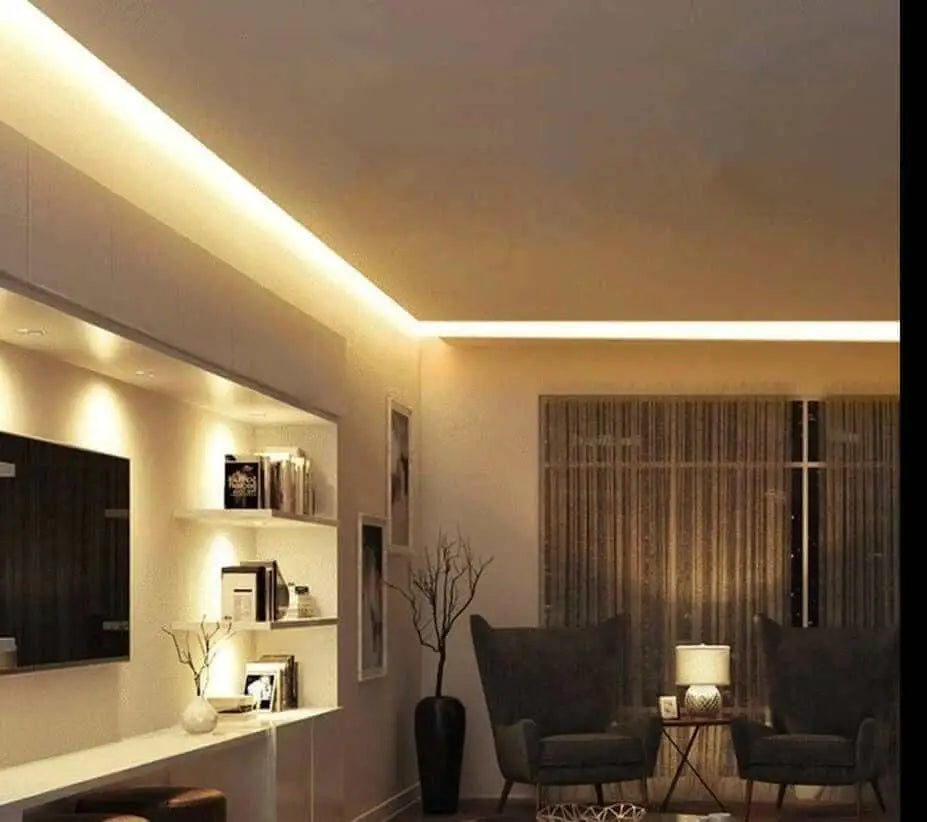

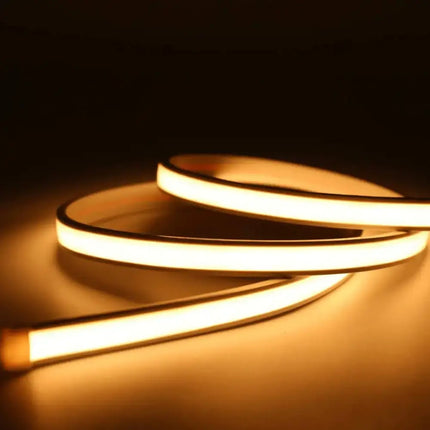

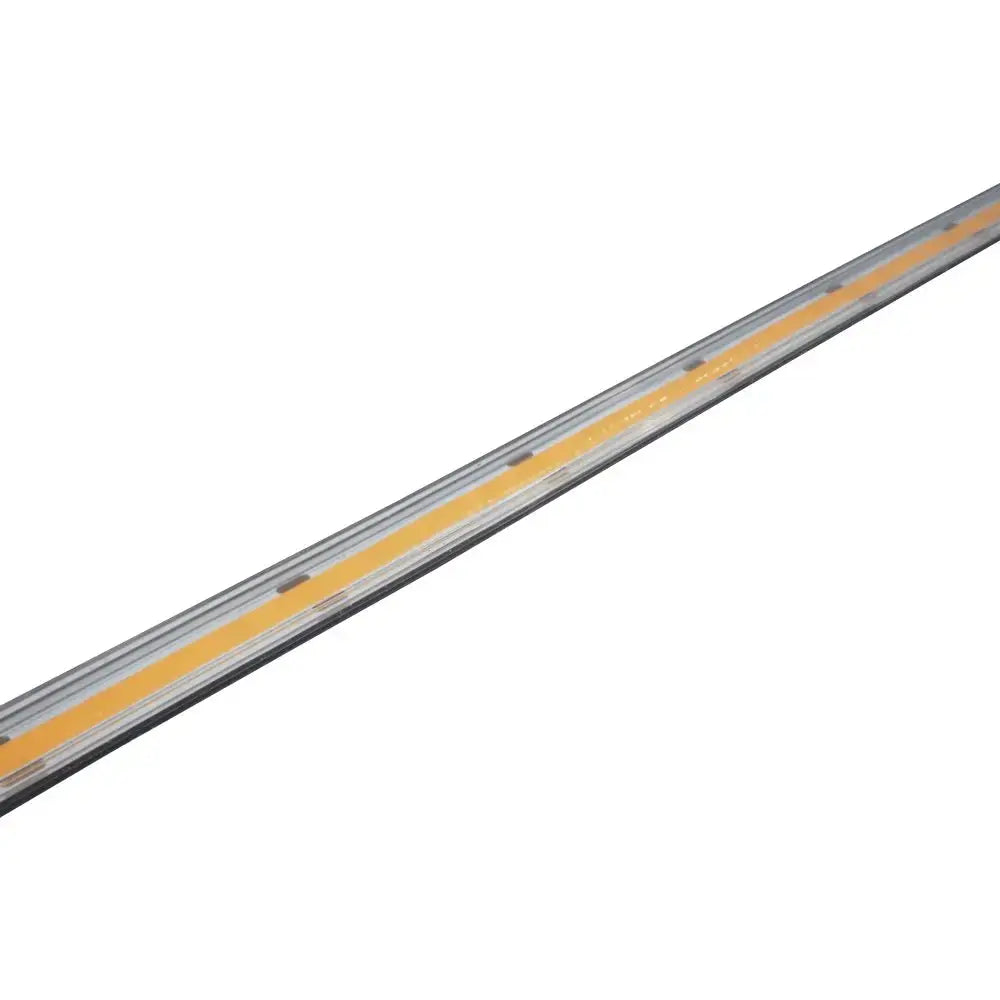

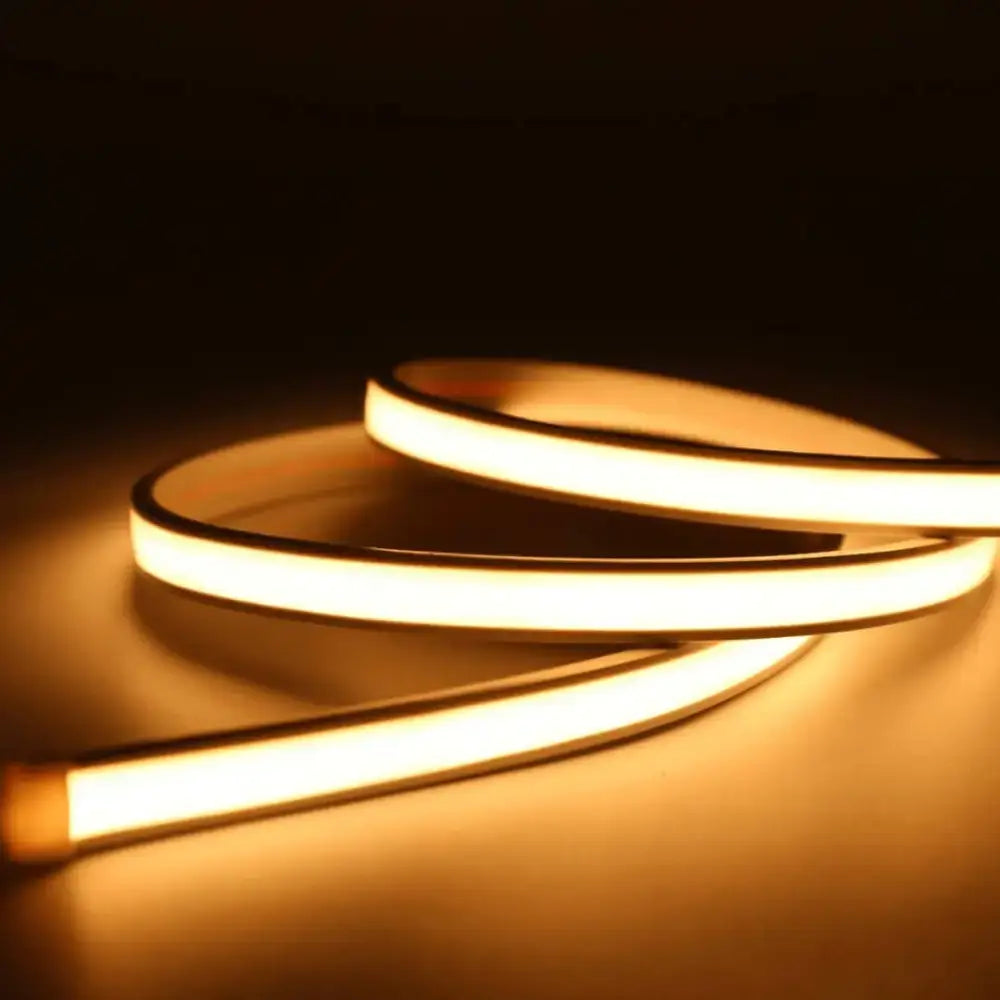

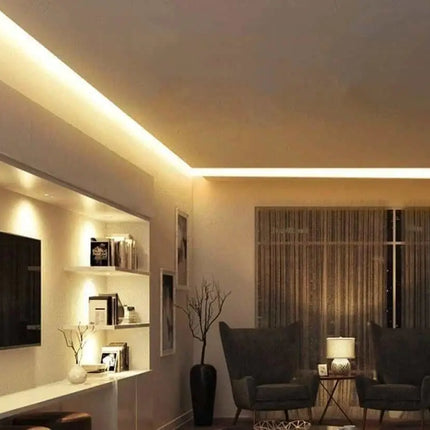

COB flexible strip light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light. Ideal for installations where the LED strip will not be mounted within profile but seen.
This LED strip light is rated at 10W/m, producing high levels of light.
CRI is >90, which provides very high true colour representation.
COB is an acronym for: Chip on Board
The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 67, suitable for all environments, however we discourage submersion. This product is also stocked in IP20 indoor classification.
Electrical Data
Voltage
24 VDC
Wattage 1m
10 W
Current 1m
0.6 A
LED Data
Package Type
COB (Chip on Board)
Chips LED
1
LEDs 1m
480
Photometric Data
Colour Temperature
3000K
Colour Rendering Index Ra
>90
Luminous Flux 1m
1100
Luminous Efficacey
110
Beam Angle
120°
Dimmable
1 ∼ 100% (refer data sheet)
Construction / Protection Data
Substrate
Double layer FPCB 3oz
Mounting
Double sided tape 3M 9080
IP Rating
IP67
Operating Temperature
-20 ∼ +70 C°
Storage Temperature
-20 ∼ +50 C°
Dimensions
Cutting increments
45.45mm
Length
5m
Width
12.0mm
Height
5.0mm
Lifetime
Working Life
70,0000 hrs
